ggsegSchaefer

This package contains dataset for plotting the Shaefer cortical atlas ggseg and ggseg3d.

Installation

You can install the released version of ggsegSchaefer from GitHub with:

# install.packages("remotes")
remotes::install_github("LCBC-UiO/ggsegSchaefer")

Example

library(ggsegSchaefer)

library(ggseg)

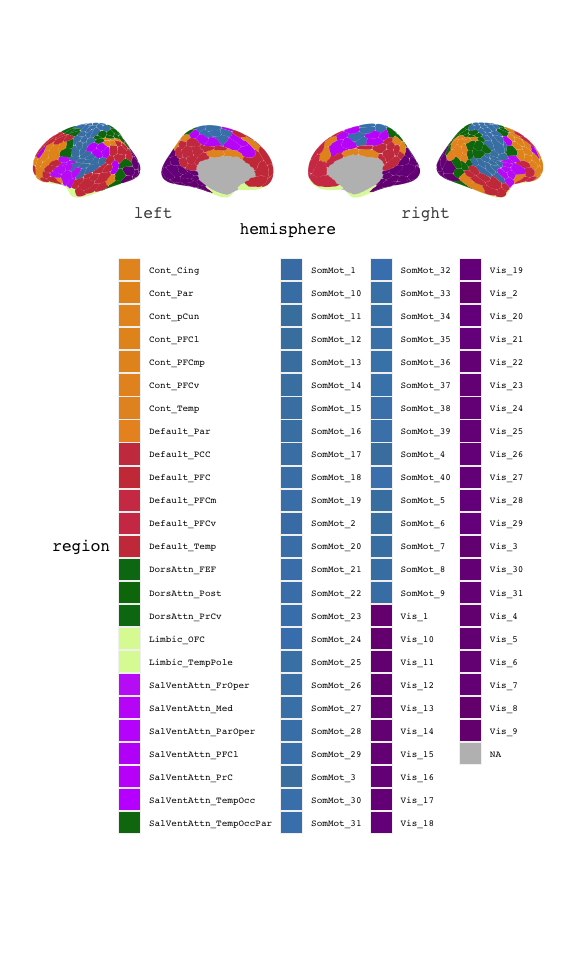

ggseg(atlas = schaefer7, mapping = aes(fill = region)) +
  scale_fill_brain("schaefer7", package = "ggsegSchaefer") +
  theme(legend.position = "bottom",
        legend.text = element_text(size = 7)) +
  guides(fill = guide_legend(ncol = 4))

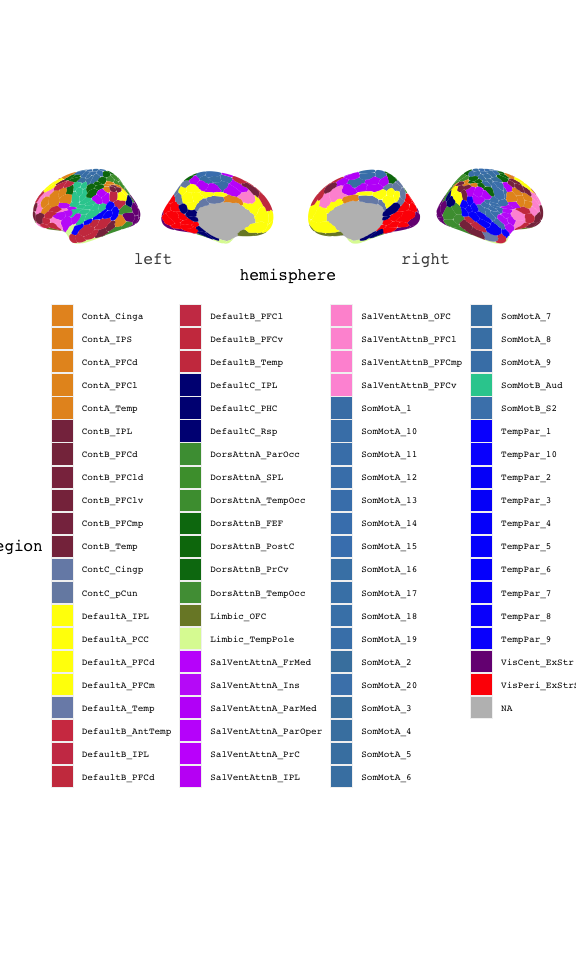

ggseg(atlas = schaefer17, mapping = aes(fill = region)) +
  scale_fill_brain("schaefer17", package = "ggsegSchaefer") +
  theme(legend.position = "bottom",
        legend.text = element_text(size = 7)) +
  guides(fill = guide_legend(ncol = 4))

library(ggseg3d)

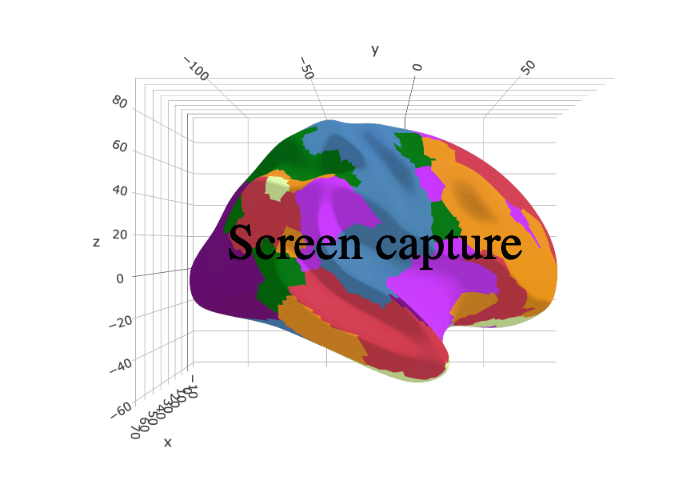

ggseg3d(atlas = schaefer7_3d) %>%
  pan_camera("right lateral")

library(ggseg3d)

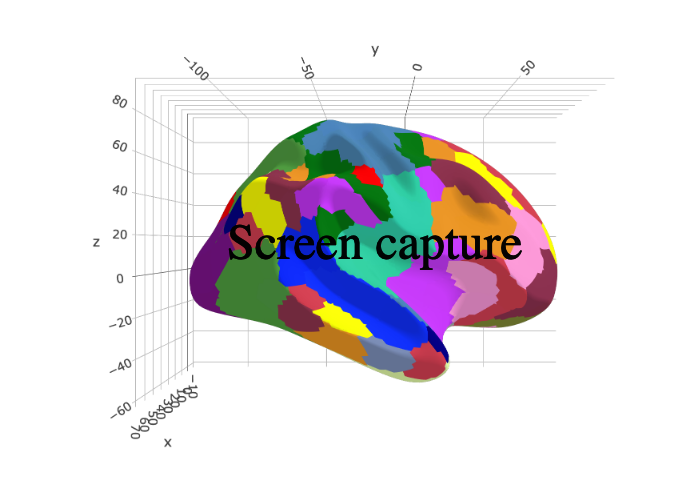

ggseg3d(atlas = schaefer17_3d) %>%
  pan_camera("right lateral")

Please note that the ‘ggsegSchaefer’ project is released with a Contributor Code of Conduct. By contributing to this project, you agree to abide by its terms.
